In modern manufacturing, precision is the core objective of all machining processes, while thermal elongation is one of its most significant threats. Thermal elongation not only causes dimensional deviations, but also leads to increased surface roughness and dynamic accuracy drift, directly affecting machining quality. This article starts from the essence of thermal elongation, analyzes its impact on machining accuracy, and explores in depth how Guangzhou Haozhi Industrial Co.,Ltd. 's shaft-core cooling technology fundamentally solves this issue, providing a new solution for high-precision machining.

01 Thermal Elongation: The Invisible Killer of Machining Accuracy

Thermal elongation refers to the thermal expansion of the spindle caused by internal heat sources (such as motor heat generation and friction) during high-speed operation. This phenomenon can lead to the following problems:

1. Dimensional deviation: Thermal elongation changes spindle length, directly affecting machining accuracy.

2. Increased surface roughness: Vibration caused by thermal expansion disrupts cutting stability, resulting in poor surface quality.

3. Dynamic accuracy drift: Thermal elongation alters dynamic balance, intensifying vibration and reducing machining stability.

Limitations of traditional cooling methods: Traditional cooling methods (such as external spraying or air cooling) only cool the spindle surface and cannot reach internal heat sources. Even with post-process thermal compensation algorithms, accuracy drift caused by thermal elongation cannot be fully eliminated. Data shows that with traditional cooling methods, machining accuracy typically stabilizes only within 10–15 μm, with thermal stabilization times of 20–40 minutes.

02 Shaft-Core Cooling Technology: Solving Thermal Elongation at Its Source

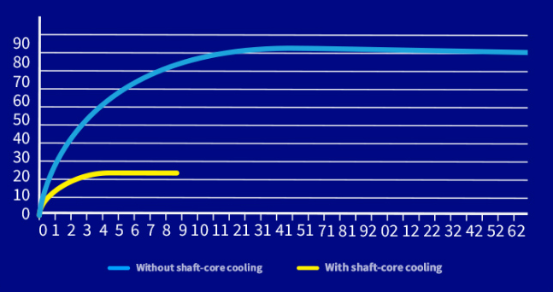

Shaft-core cooling technology adopts an innovative internal direct-cooling approach, addressing thermal elongation at its root. Cooling media directly act on the spindle’s core heat-generating areas, achieving precise temperature control. Thermal stabilization time is reduced to 3–5 minutes (a 60–80% reduction), and machining accuracy is maintained within 5 μm. Key advantages include:

1. Precise temperature control

Internal cooling media act directly on shaft-core heat sources, ensuring stable temperature even at high speeds, significantly reducing dimensional deviation and surface roughness.

2. Improved adaptability to machining processes

During different machining processes, spindle speed and cutting parameters often change, leading to thermal elongation fluctuations. Shaft-core cooling maintains thermal stability under all operating conditions, ensuring consistent accuracy and surface quality, even during finishing operations.

3. Enhanced adaptability to complex materials

Thermal elongation is especially critical when machining difficult materials such as titanium alloys and high-temperature alloys. Shaft-core cooling ensures stability under high-load conditions, supporting a wide range of materials.

4. Improved dynamic stability

By suppressing vibration caused by thermal elongation, shaft-core cooling significantly enhances dynamic stability. Even at ultra-high speeds of 20,000–36,000 rpm, the spindle maintains low vibration and noise, achieving dynamic balance up to G0.4.

03 Proven Applications: Industry Use of Shaft-Core Cooling Technology

1. Precision mold manufacturing

In mirror polishing and high-gloss automotive mold machining, thermal elongation increases surface roughness. Shaft-core cooling ensures mirror-finish quality and micron-level precision.

2. Aerospace and defense

Machining titanium alloy blades and high-temperature alloy structures requires extremely high accuracy. Shaft-core cooling suppresses thermal elongation, ensuring stable machining of complex surfaces.

3. New energy and 3C electronics

In machining motor shafts, battery housings, and metal enclosures, shaft-core cooling enables high-speed, high-finish cutting while ensuring dimensional accuracy and surface quality.

04 Cost Efficiency: From High Maintenance to Low Total Cost

Thermal elongation accelerates spindle and tool wear, increasing maintenance costs. Shaft-core cooling creates a constant-temperature environment, extending spindle life and reducing overheating downtime, significantly lowering total lifecycle costs.

05 Core Value of Shaft-Core Cooling Technology

1. Higher precision

Thermal errors are significantly reduced, improving consistency in mass production.

2. Longer service life

Spindle and tool life are extended, reducing total equipment lifecycle costs.

3. Stronger adaptability

From aluminum alloys to hardened steel, from low speed to ultra-high speed, shaft-core cooling demonstrates outstanding versatility.

Conclusion: A New Breakthrough in Manufacturing Technology

Thermal elongation was once an invisible killer in high-precision machining. Shaft-core cooling technology has changed this reality by addressing the issue at its source. It enhances machining accuracy, extends equipment life, reduces maintenance costs, and improves material adaptability.

Guangzhou Haozhi Industrial Co.,Ltd. Shaft-Core Cooling Technology — transforming every rotation into an expression of precision, and every cut into a mark of exceptional quality.
