Product Series:Handle of spring collet

Product Number:HSKA-SK

HSK A-KR

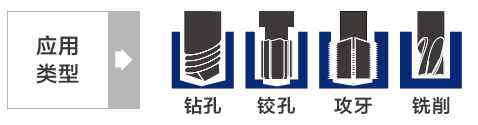

Application type

Drilling, reaming,tapping, milling and cutting


1.Dynamic balancinggrade: ≤G1.

2.High precision: Shankrun-out accuracy: ≤2μm. Combined run-out accuracy: ≤5μm.

3.High axial and radialrepeatability positioning precision; Repeatability positioning precision is≤2μm.

4.Featuring highdynamic and static rigidity and stability, and high axial and radial accuracy,it ensures the accuracy of a product machined at high speed.

5.HSK shank is designedwith a structure of hollow short taper shank. Compared with BT shank, HSK shankhas a short length and light weight. With the power to change the cutter morequickly, it is especially suitable for high-speed machining.

6.The taper angle of SKchuck for HSKA shank is 4°.

7.Advantages of HSKAshank with SK chuck: High precision, long service life, 1.5times greater thanthe torque value of any other type of chuck, clamping range of Φ1.0-25.0mm,H7-precision cutter. It is widely used for milling, drilling, engraving andother machining areas.

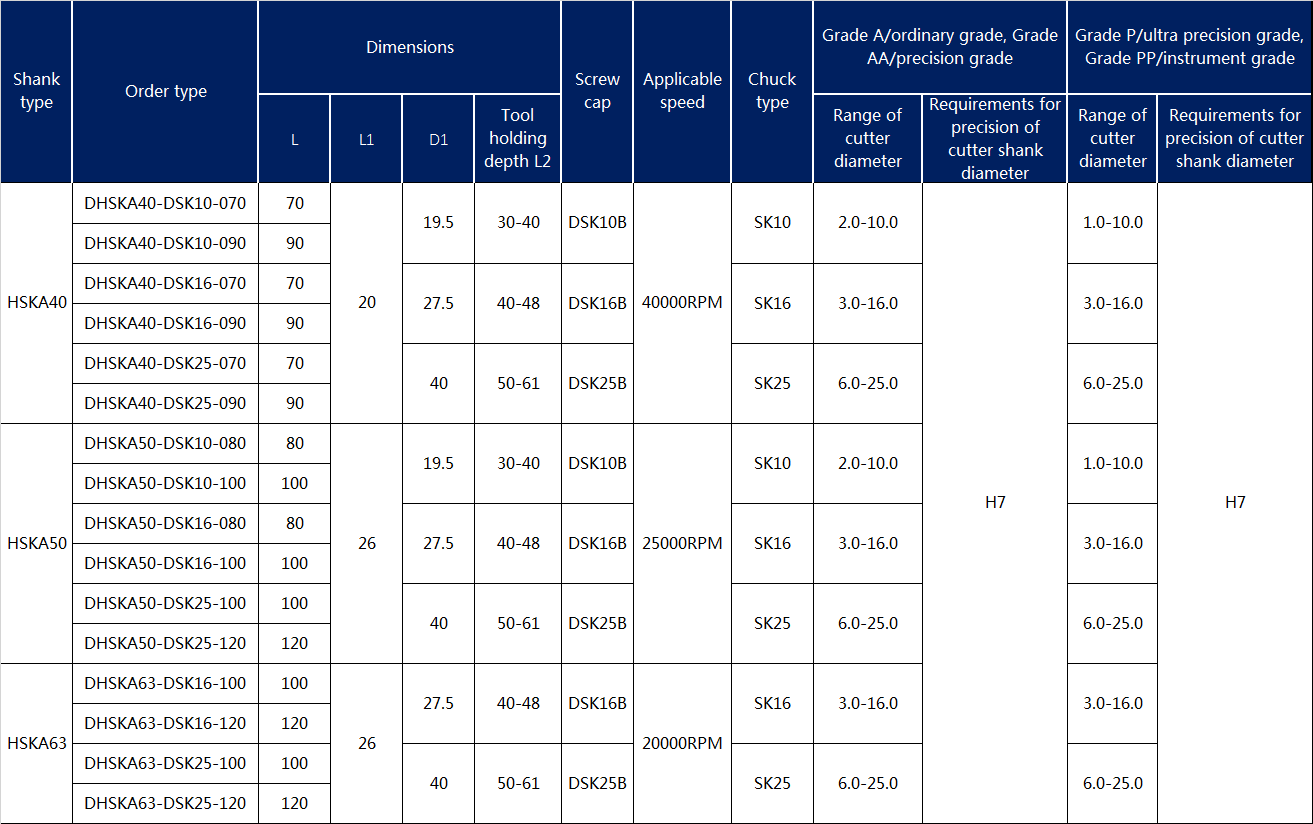

技术参数
序号 项目 标准值
